Cleanroom Fan Powered HEPA Filters
Features of our Fan Powered HEPA Filters
Standard Fan Filter Units (FFUs)
- Model: 2' × 4' Envirco MAC10® LEDC RSRE
- Efficiency: 99.99% @ 0.3 Micron HEPA Filter
- Replaceability: Room Side Replaceable (RSRE) for HEPA Filter and Motor Assembly, 3/4” knife edge permits easy placement in gel track ceiling grid system
- Performance: Energy Efficient: 42 watts at 90 FPM velocity (450 CFM) and low noise of 45 DBA at 90 FPM
- Control Options: Manual speed control via onboard potentiometer, Network speed control (Modbus RTU), Analog remote speed control (0–10V), Compatible with Building Management Systems (BMS) and Digital MonitoringSystems
- Electronically Commutated (EC) brushless motor, torque programmed
- UL listed (115V, 208-240V, 277V) with standard UL 900 filter, file number E152685 (UL507)
Additional Available FFU Models
- Model: 2’x4’ AJ Manufacturing Ceiling-Mounted Criti-Clean Ultra
- Efficiency: 99.99% @ 0.3 Microns
- Construction: Type 304 Stainless Steel
- Replaceability: Room Side Replaceable (RSR) for HEPA filter, motor, and electrical controls
- Faceplate control (accessible inside the room)
- Compatible with Building Management Systems (BMS) and Digital Monitoring Systems
Power and Airflow Configuration Options
Power Supply Options
- Standard: 115V/60Hz
- Special Orders: 208-240V, 277V
Supply Air Connection Options
- Standard: 10" or 12" duct collar for direct connection to the air conditioning supply

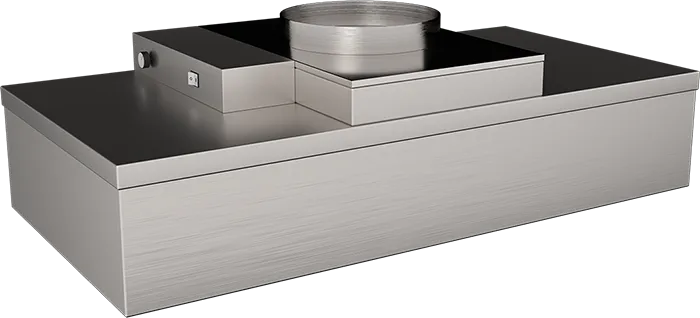

1 Collar Fan Filter Unit

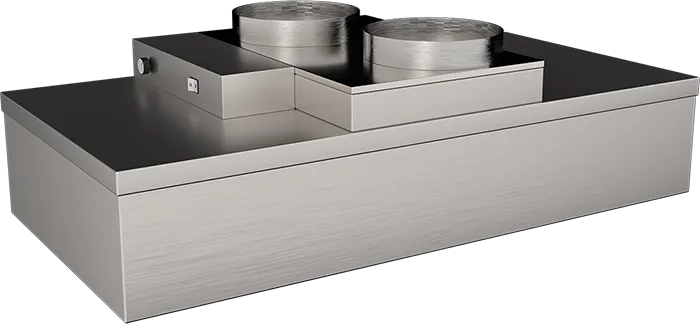

2 Collar Fan Filter Unit
